About Trilift Universal Cylinder Clamp

The Trilift® Universal Cylinder Clamp when used in conjunction with the Trilift® Multijig 15 is designed to assist with the safe and efficient handling of large hydraulic cylinders, including hoist cylinders and rear struts.

Featuring a telescopic arm, the reach of the clamp can be easily altered for two lengths of operation by pinning the adjustable arm to the required length.

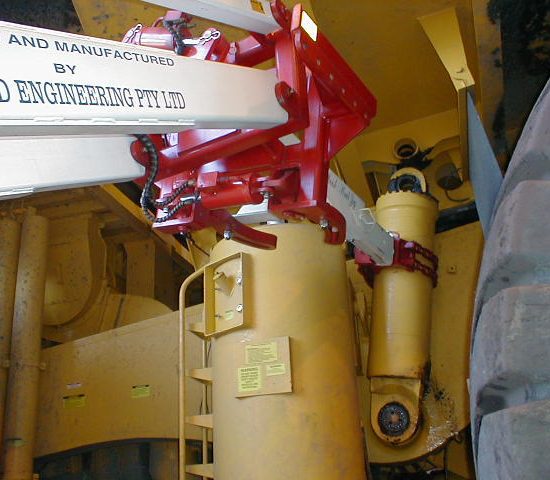

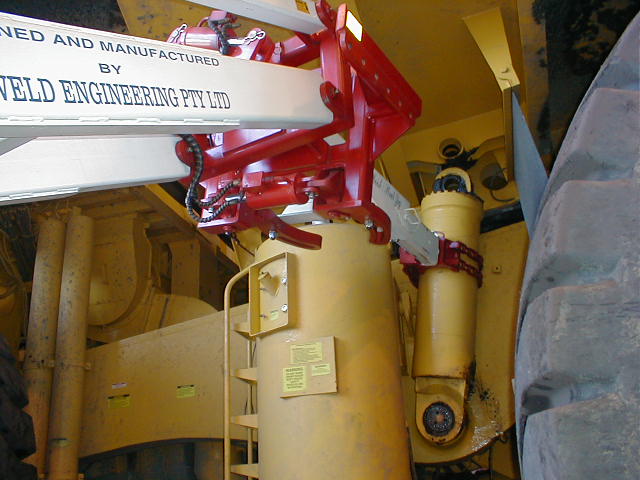

To clamp a cylinder, tension adjustable wire ropes are fitted to the head of the Trilift® Universal Cylinder Clamp. A lifting eye is provided under the boom so that the jig can also be used as a jib crane.

Working Load Limit capacity of 1850kgs at maximum reach
Adjustable arm length for extended reach (max extension 2280mm approx)
Adjustable wire ropes to clamp cylinders of varying diameters from 350mm to 500mm

Simple, quick attachment to the head of the Trilift® Multijig 15

Our Trilift® products are custom designed to resolve maintenance safety and efficiency issues within the earthmoving and mining industries. Most of our Trilift® products are compatible with various OEM equipment makes and models, yet some Trilift® products have been custom designed for a particular OEM make and model.

This OEM Compatibility list allows you to discover the Trilift® Products that we offer to increase the safety and efficiency of your OEM equipment maintenance and operations.

This list is a recommended guide only. This list does not include all OEM equipment makes and models. For specific details please contact Hedweld for technical advice.

The below list states which OEM makes and models we believe this Trilift® product is compatible with.
