About Trilift Cylinder Handler

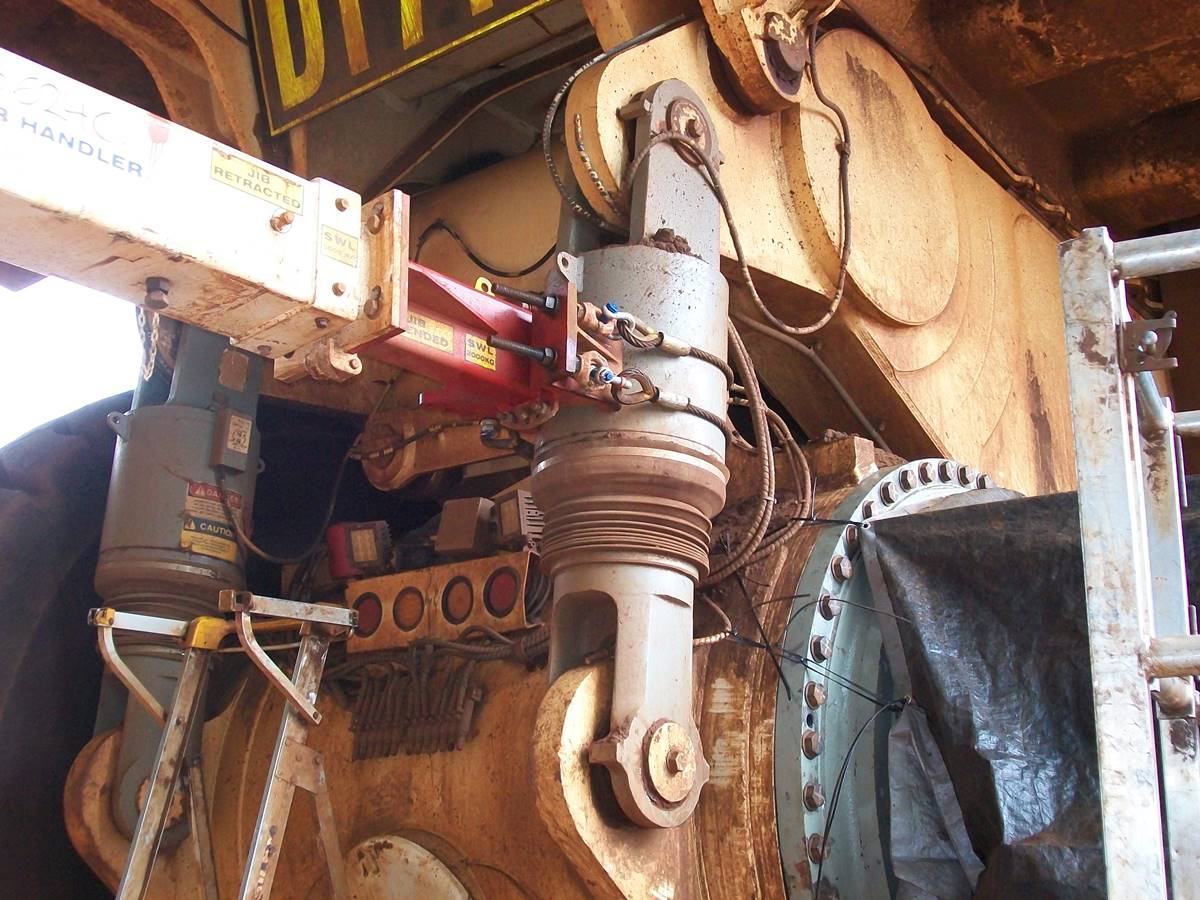

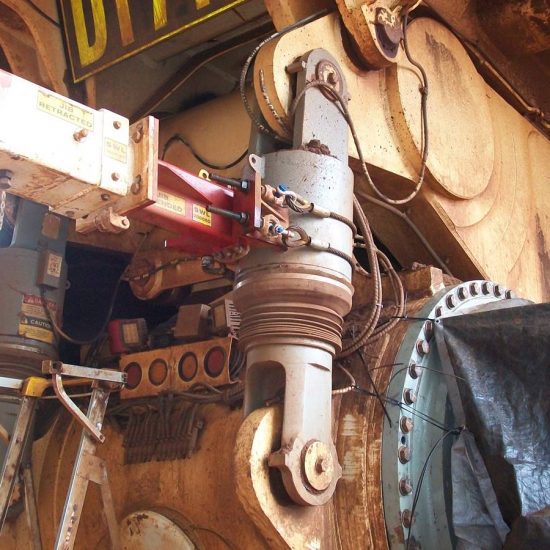

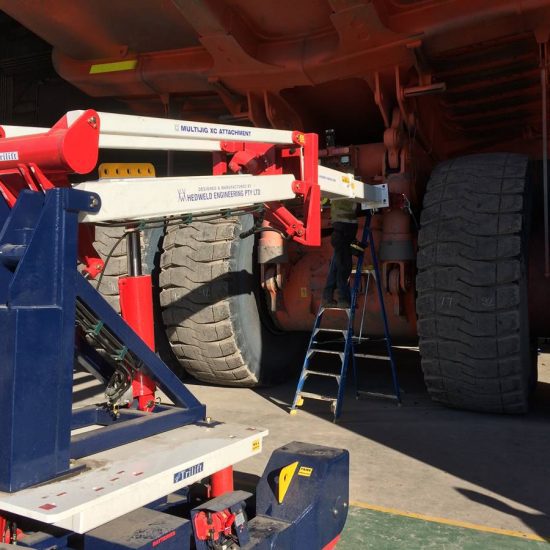

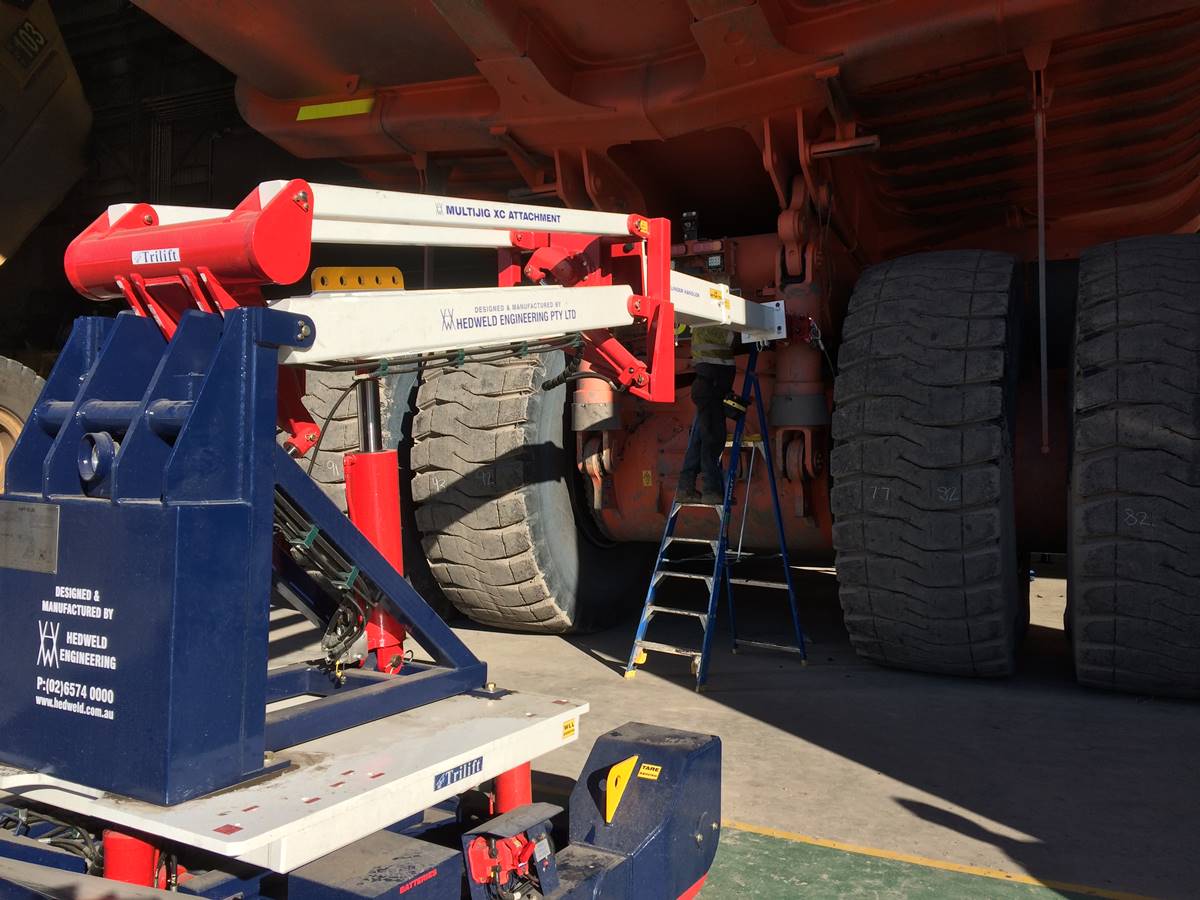

The Trilift® Cylinder Handler when used in conjunction with the Trilift® Multijig XC Tilt Head, is designed to assist with the safe and efficient handling of large hydraulic cylinders, including hoist cylinders, front and rear struts on various models.

Featuring a telescopic arm, the reach of the clamp can be easily altered for two lengths of operation by pinning the adjustable arm to the required length. To clamp a cylinder, tension adjustable wire ropes are fitted to the head of the Trilift® Cylinder Handler. The attachment of a lifting hook allows the jig to be used as a jib.

Working Load Limit capacity of 2000kgs at maximum reach
Telescopic reach adjustment

Quick-Hitch for connection to Trilift® Multijig XC Tilt Head and Trilift® Rear Suspension Link Jig
Adjustable wire ropes to clamp cylinders of varying diameters 350mm to 500mm
New small Clamp Head 150mm to 350mm available

Our Trilift® products are custom designed to resolve maintenance safety and efficiency issues within the earthmoving and mining industries. Most of our Trilift® products are compatible with various OEM equipment makes and models, yet some Trilift® products have been custom designed for a particular OEM make and model.

This OEM Compatibility list allows you to discover the Trilift® Products that we offer to increase the safety and efficiency of your OEM equipment maintenance and operations.

This list is a recommended guide only. This list does not include all OEM equipment makes and models. For specific details please contact Hedweld for technical advice.

The below list states which OEM makes and models we believe this Trilift® product is compatible with.
