About Trilift Balance Jig

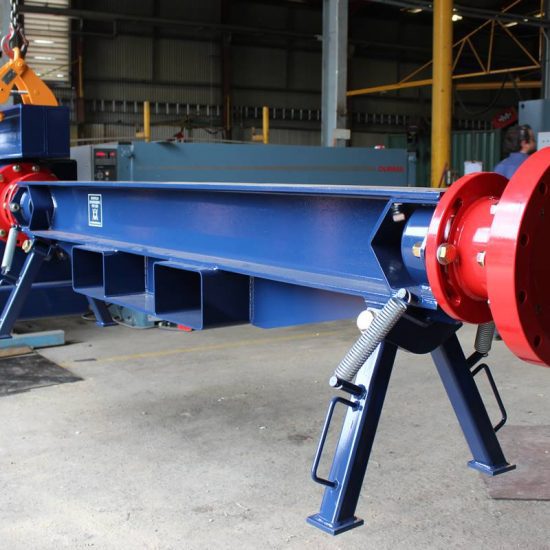

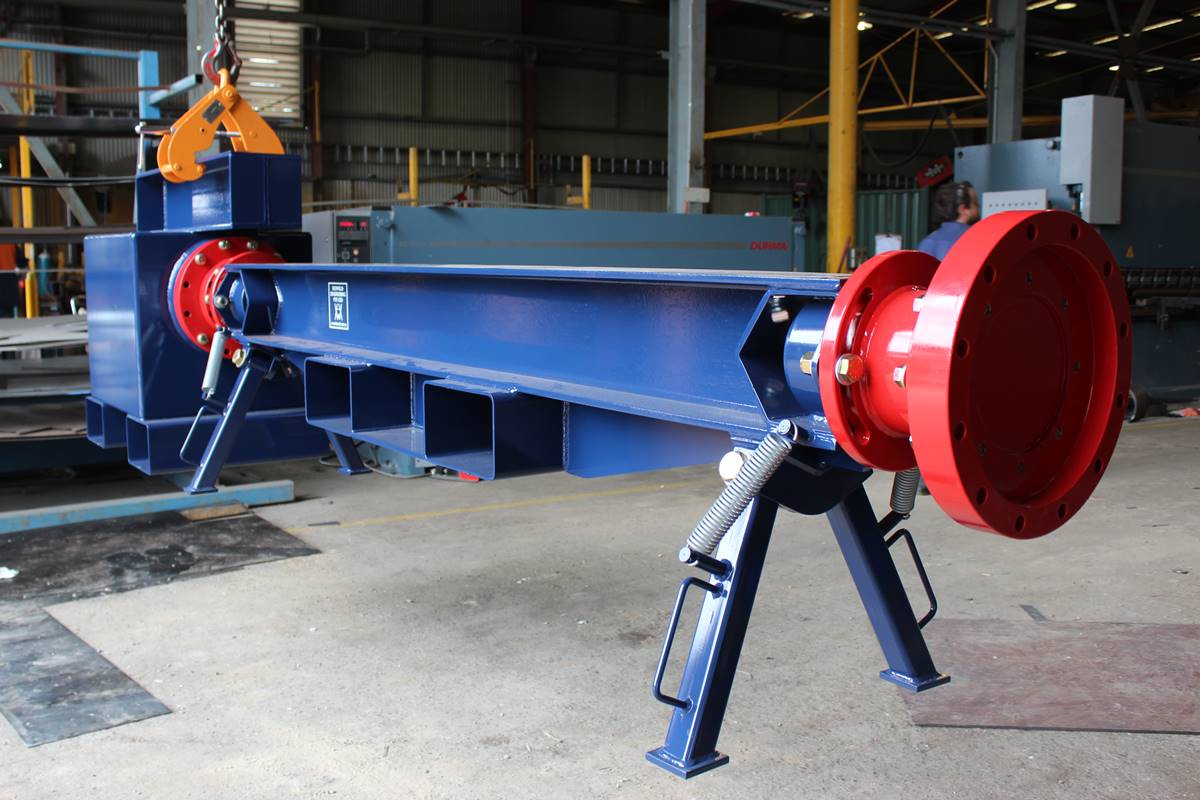

The Trilift® Balance Jig has been designed to assist with the safe installation and removal of the GE electric drive motor armatures, drive axles and similar components from heavy earthmoving and mining vehicles.

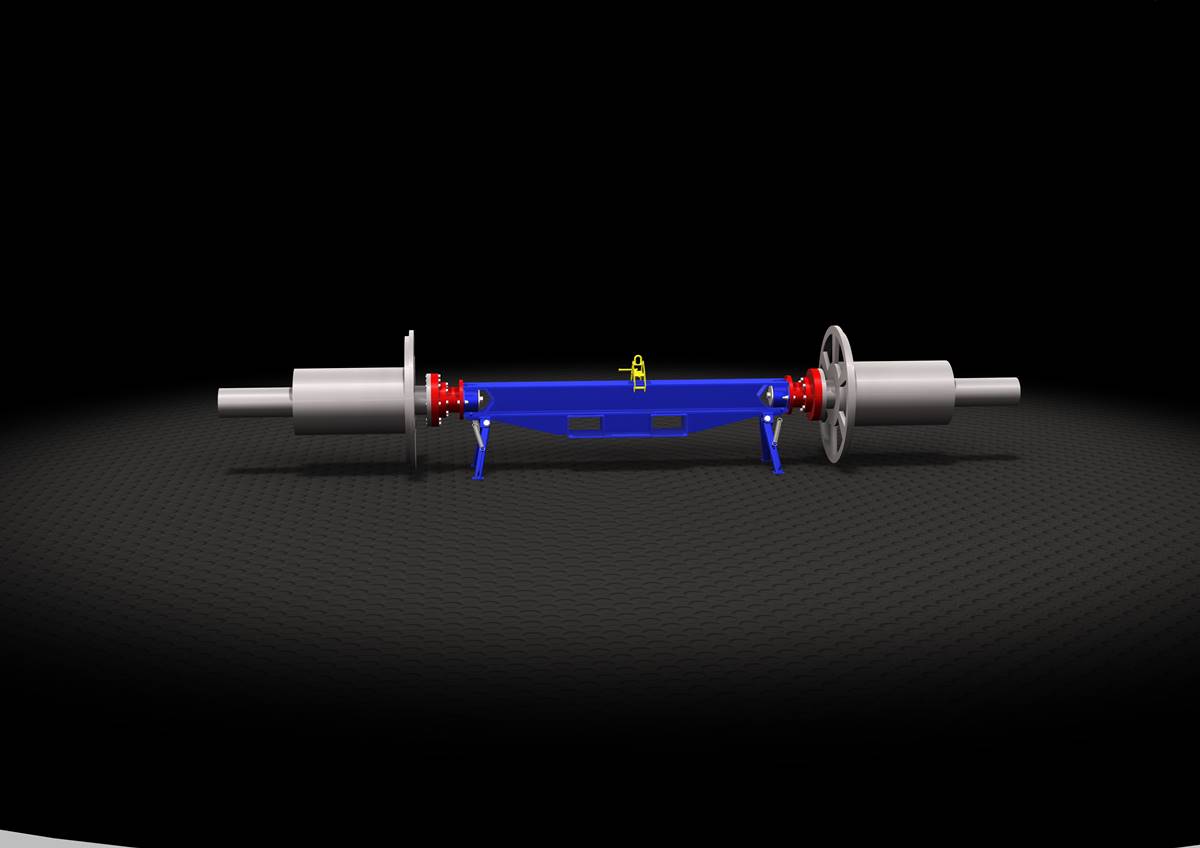

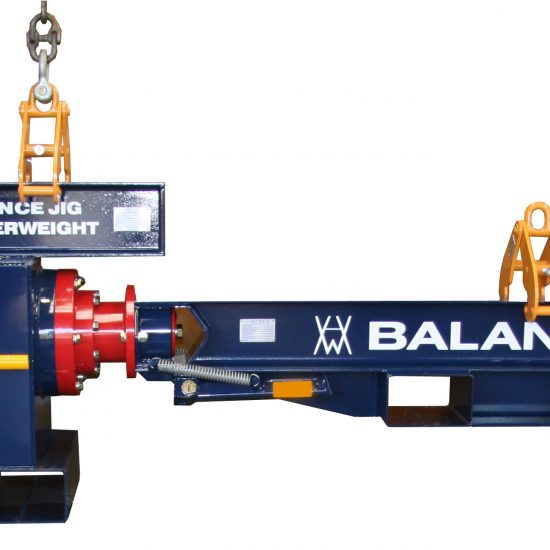

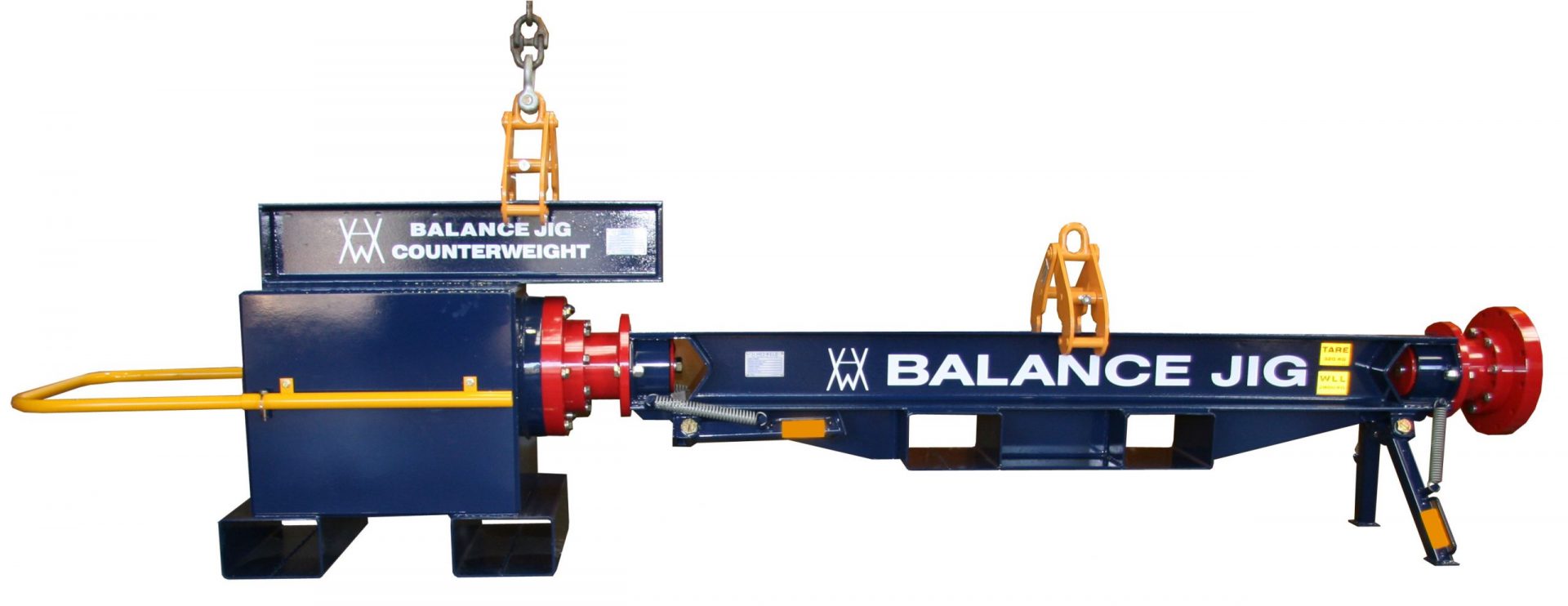

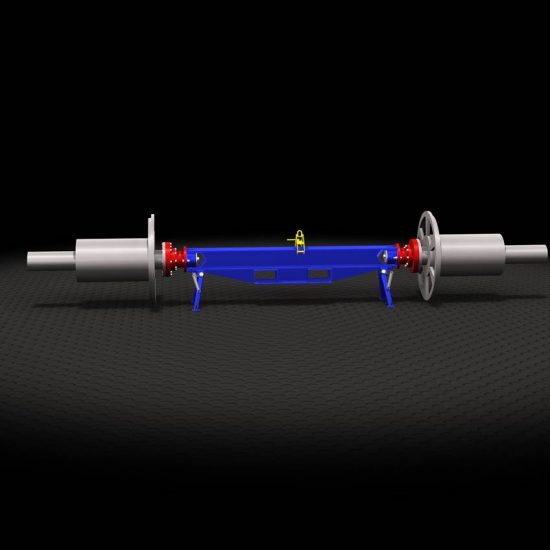

This updated design incorporates a removable counter weight to allow the handling of (2) armatures for reduced turn-around time.

The jig is designed for use on overhead or mobile cranes for support during component installation and/or removal. A sliding girder clamp with locking screw provides adjustable positioning to establish a balance point.

Total Working Load Limit of 2800kgs/6172lbs
Rotating flange adapters for bolting an armature to the jig
Sliding girder clamp with locking screw to establish lift balance
Retractable legs for jig support when resting on the floor
Adjustable handle

Safer component handling

Our Trilift® products are custom designed to resolve maintenance safety and efficiency issues within the earthmoving and mining industries. Most of our Trilift® products are compatible with various OEM equipment makes and models, yet some Trilift® products have been custom designed for a particular OEM make and model.

This OEM Compatibility list allows you to discover the Trilift® Products that we offer to increase the safety and efficiency of your OEM equipment maintenance and operations.

This list is a recommended guide only. This list does not include all OEM equipment makes and models. For specific details please contact Hedweld for technical advice.

The below list states which OEM makes and models we believe this Trilift® product is compatible with.
